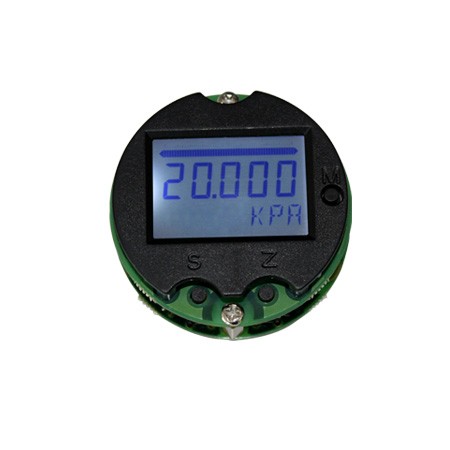

Hart module SE52H

Specifications:

•Input: all of toxic and electrochemical gas sensors and pressure sensor, load cell, strain gauge, magnetic field sensor, differential pressure sensor, resistor of 2/3/4 wires etc

•Backlight LCD display

•Output: 4...20mA

SE52H is suitable for more than 20 different electrochemical gas sensors & pressure sensors, strain gauges, differential pressure sensors, level and etc.

SE52H converts input signals into 4 to 20 mA analogue output signal.

Performance

* Multifunction solution for gas, pressure, level, load cell, strain gauge and magnetic field sensor and etc

* Freely linearity and temperature compensation

* Excellent stability

* Convenient installation and operation

* High accuracy, fast response

* Excellent EMC performance

Technical data

* Input: all of toxic and electrochemical gas sensors and pressure sensor, load cell, strain gauge, magnetic field sensor, differential pressure sensor, resistor of 2/3/4 wires etc.

* Output: 4-20mA

* Supply voltage: 9-45VDC

* Operation: PC programmable or PDA

* Operating temperature range: -40-85℃

* Humidity (non-condensing): 0 to 95%RH

* Dimension: Φ51mm
