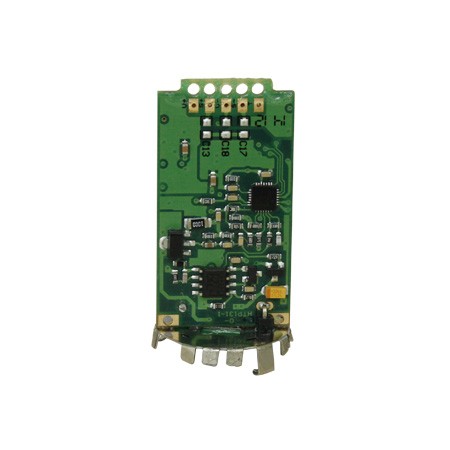

Hart pressure circuit board SE633

Release date:2019-03-27 11:21:10

Specifications:•Output: 4 to 20mA•Supply voltage: 9-45VDC•Operation: PC programmable or PDA•Operating temperature range: -40-85℃•Humidity(non-condensing):0 to 95%RH•Dimension: 21.5mm×40mmSENSE series


Specifications:

•Output: 4 to 20mA

•Supply voltage: 9-45VDC

•Operation: PC programmable or PDA

•Operating temperature range: -40-85℃

•Humidity(non-condensing):0 to 95%RH

•Dimension: 21.5mm×40mm


SENSE series SE633 board with HART-protocol is suitable for Multi-sensors. SE633 can accept signal of 3051/1151 Metal capacitive with preamplifier. SE 633 is the Intrinsic Safe version for use in Ex-applications.


Performance

* Minimized structure style:21.5mm×40mm

* Wide voltage supply range:9-45VDC

* Self stability and filter setup:Improve transmitter stability

* Freely linearity and temperature compensation:Min. 2 points, max. 11 points

* Self-learning function:Acceptability 1.5mV-4.8V signal input

* Popular sensors acceptable:E.g. Pressure, load cells magnetic float ball, strain gauge etc.

* Backup and restore data:Convenient for using on the locale

* Excellent EMC performance:Suitable for harsh conditions


Application

The SE633 may be used for various measure sensor:

-pressure sensors

-differential sensors (3051/1151 Metal Capacitive with preamplifier)

-load cells

-magnetic field sensors

-strain gauge

- resistor of 2/3/4wires


Technical data

* Output: 4 to 20mA

* Supply voltage: 9-45VDC

* Operation: PC programmable or PDA

* Operating temperature range: -40-85℃

* Humidity (non-condensing): 0 to 95%RH

* Dimensions: 21.5mm×40mm
