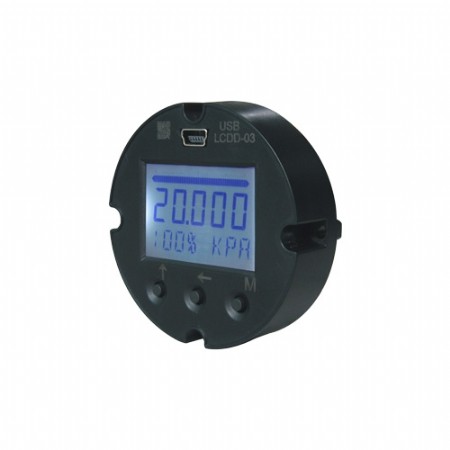

Display unit LCDD-03

Release date:2018-10-24 17:11:23

Specifications:1. With white backlight display, visible in the dark environment.2. 2-wire, no additional power supply required3. High accuracy and stability4. Many kinds of units can be displayed, suc

Specifications:
1. With white backlight display, visible in the dark environment.
2. 2-wire, no additional power supply required
3. High accuracy and stability
4. Many kinds of units can be displayed, such as mA, us, PH, Mbar, ect. (Further versions are possible on request. )
5. 2 OPTO switches output

Performance:
* No additional power supply required
* Compact design
* Easy programming with Push buttons
* Reverse Polarity
* Low power consumption
* 16 Bit ADC MCU inside
* LCD can work at 3mA
* Many kinds of the units can be displayed

Technical data Display:
* Type: Visible range 32.5X22.5mm; 5-digit 7-segment main display, digit height 8mm, 8-digit 14-segment additional display, digit height 5mm; 52bars meter with 2% resolution
* Range: -9.9.9.9. To 9.9.9.9.9.
* LCD can work on 3mA


Accuracy:0.1%& plusmn; 1 digit
Digital damping:  0 to 100 s(step 0.1 s)
Units:  mA, us, ms, s, PH, & ordm; F, & ordm; C, PSI, MPa, bar, kPa, mbar, Pa, % etc.
Supply:  Not required, 4 to 20mA loop powered
Voltage drop:& le; 3.1V
Short-circuit protection:Permanent
Reverse polarity protection:Max. current: approx. 200mA
Ambient temperatures:  Operating: -30 to 70℃
Storage: -40 to 70℃
Display housing:  ABS
Weight:  Approx. 28g
Ingress protection:IP 65(when mounted)
Color of housing:   Black
