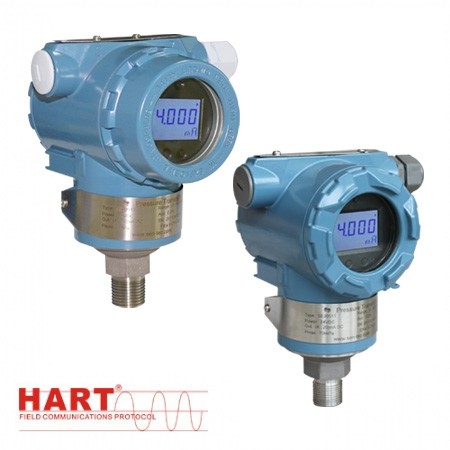

pressure transmitter STK135

Release date:2018-10-24 14:47:57

Specifications:*Ceramic sensor with diaphragm Al2O3, 99.9% (Standard)*Ceramic thick sensor, Silicon sensor (Optional)*Corrosive or abrasive applications*Short reaction time*Extremely high overload lim

Specifications:
*Ceramic sensor with diaphragm Al2O3, 99.9% (Standard)
*Ceramic thick sensor, Silicon sensor (Optional)
*Corrosive or abrasive applications
*Short reaction time
*Extremely high overload limit
*Range: -0.1~ 70MPa
*Option: LCD display
*Compensated temperature range of sensor: -20...80 degree celsius


Supply voltage:12...45 VDC
Output4...20 mA +HART protocol digital communication
3-wire-system (optional): 1...5V
Signal range:3.8mA...22.8mA
AccuracyNominal range 0.1%
0.25% accuracy for range trundown 4: 1
0.5% accuracy for range trundown 10: 1
Power supply effect:Negligible
Vibration effect:  < 0.01% of URL /g when tested 200Hz in any axis relative
Thermal effect:  & plusmn; 0.05%/10K
Permissible load:& le; 50(V-12)Ω
Stability:0.1% FSO/Year
Switch on delay:5s
Damping: 0 to 100s, step:  0.1s
Response time:200 ms (without consideration of electronic damping)
Self stability configuration:0 to 2%
Filter configured:0 to 160 uA
Communication resistance for HART Protocol:  Typ. 250 Ω
