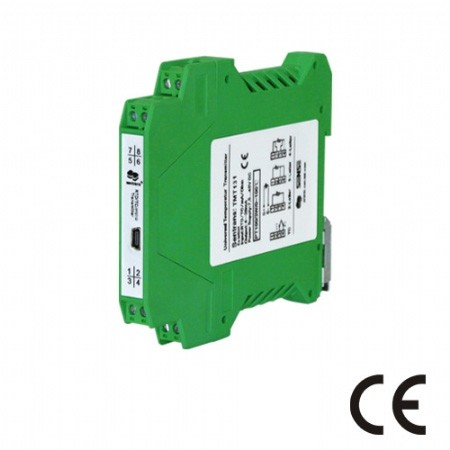

DIN-rail Temperature transmitter TMT131

Release date:2018-08-21 14:56:52

Ultralight four-curved surface Thin, round, comfortable grip Four curved glass body, ultra-light 7 series aluminum metal middle frame, water drop arc waist design.

Specifications:
1)Galvanic isolation 2000VAC
2)DIN Rail Temperature controller for converting various input signals into a scalable 4 to 20mA analogue output signal
3)Wide voltage supply range
4)Expanded resistance input (max 2kΩ)
5)Expanded voltage input (max 2KmV)

Performance:
* 2-wire technology, 4 to 20mA analogue output
* High accuracy in total ambient temperature range
* Internal cold junction
* Customer specific measurement range setting or expanded SETUP
* Simple and user friendly software
* USB communication


Technical data:
Output:  4 to 20mA
Supply voltage:7.5 to 45VDC
Input:RTD, TC, Ohm, mV
Influence of ambient:Negligible
Load influence:Negligible
Power supply influence:Negligible
Resolution:0.3uA
Installation:DIN-rail
Condensation:Allowable
ExplosionIntrinsically safe: no limit
